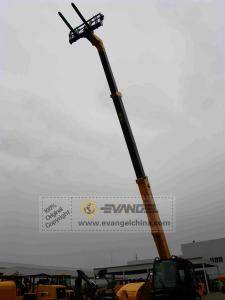

XCMG 4WD Telescopic Handler Forklift XT680-170


Cummins diesel engine

QSB4.5 (Optional)

Rated power kw

82

Min.ground clearance mm

400

Wheel base mm

3250

Tread mm

2060

Rated speed r/min

2200

Displacement L

4.4

Number of cylinder

4

Max. speed km/h

37

Operating weight t

13.6

Maximum lift capacity kg

4500

Lift capacity to full height kg

2269

Lift capacity at full reach kg

453

Lift height m

16.7

Reach at maximum lift height m

1.063

Maximum forward reach m

12.6

Overall dimensions(L*W*H) mm

6890×2500×2815


Telescopic forklift Truck is a kind of Multi-functional engineering machinery .telescopic forklift truck can be used for lift and carry, with good stability and efficiency. telescopic forklift truck has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.


1. Adopt the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.

2. Equipped with power transmission, compact structure, high rigidity.

3. With articulated frame, small turning radius.

4. Four Wheel drive, front steering/crab wheel steering/four wheel steering.

5. The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comportableness of the operating

6. Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.

7. Multi-function instrument can be chosed..It is a kind of machinery which is suitable for lifting and carrying in narrow ground.



All technical parameters are subject to change without prior notice because of technical improvements.
