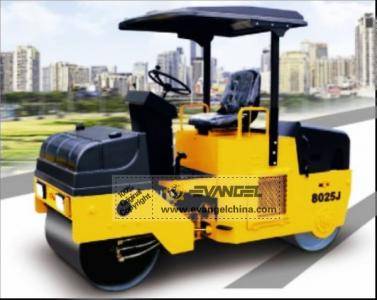

·Equipped with reliable changchai engine
·Single frequency & amplitude, and super centrifugal force, creates strong compacting effect.
·Reasonable configuration, reliable performance, and high working efficiency hydraulic components
·Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
|
·Overall Dimension |
|||||||||||||
|
1 |
Length |
2660mm |
|||||||||||
|
2 |
Width(to outside of wheels) |
1060mm |
|||||||||||
|
3 |
Height(To the top of the cab) |
2350mm |
|||||||||||
|
4 |
Wheel base |
1930mm |
|||||||||||
|
5 |
Min. ground clearance |
140mm |
|||||||||||
|
Main Technical Specification |
|||||||||||||
|
1 |
Static line force(vibratory Drum) |
140N/cm |
|||||||||||
|
2 |
Static line force(Driving drum) |
134N/cm |
|||||||||||
|
3 |
Frequency |
50HZ |
|||||||||||
|
4 |
Centrifugal-Force |
20KN |
|||||||||||
|
5 |
Amplitude |
0.5mm |
|||||||||||
|
6 |
Operating weight |
2000kg |
|||||||||||
|
7 |
Static Weight at Drum |
900kg |
|||||||||||
|
8 |
Static Weight at rear drum |
1100kg |
|||||||||||
|
9 |
Min. turning radius |
2250mm |
|||||||||||
|
10 |
Drum diameter |
650mm |
|||||||||||
|
11 |
Drum width |
850mm |
|||||||||||
|
12 |
Traveling speed(Km/h)，2 forward &2 reverse |
||||||||||||
|
|
(1) 1stgear (F/R) |
2 |
|||||||||||
|
(2) 2nd gear (F/R) |
5.6 |
||||||||||||
|
13 |
Gradient capacity |
20% |
|||||||||||
|
Diesel engine |
|||||||||||||
|
1 |
Model |
Changchai engineCZ380Q |
|||||||||||
|
2 |
Type |
Vertical, in-line, liquid-cooled and four-stroke engine |
|||||||||||
|
3 |
Rated output |
14.7 kW |
|||||||||||
|
4 |
Rated speed |
2200(r/min) |
|||||||||||
|
5 |
Min. specific fuel consumption |
255g/kw.h |
|||||||||||
|
Driving System |
|||||||||||||
|
1 |
Type |
Mechanical transmission and rear wheel drive |
|||||||||||
|
2 |
Transmission line |
Engine-gearbox-chain-axle |
|||||||||||
|
Working Device Hydraulic System |
|||||||||||||
|
1 |
Model of vibratory pump |
|
|||||||||||
|
2 |
System pressure |
16mpa |
|||||||||||
|
3 |
Model of vibratory motor |
|
|||||||||||
|
SteeringSystem |
|||||||||||||
|
1 |
Type |
Middle articulated frame. Full-hydraulic Steering |
|||||||||||
|
2 |
Model of steering pump |
|
|||||||||||
|
3 |
Model of redirector |
|
|||||||||||
|
4 |
System pressure |
|
|||||||||||
|
5 |
Dimension of steering cylinder |
|
|||||||||||
|
Brake System |
|||||||||||||
|
1 |
Type of travelingbrake |
pedal control clamp brake |
|||||||||||
|
2 |
Type of parking brake |
Hand brake Flexible shaft control clamp brake |
|||||||||||
|
Oil Capacity |
|||||||||||||
|
1 |
Fuel(diesel) |
|
|||||||||||
|
2 |
Engine lubricating oil |
|
|||||||||||
|
3 |
Oil for hydraulic system |
|
|||||||||||
|
4 |
water for Sprinkle water tank |
|
|||||||||||
