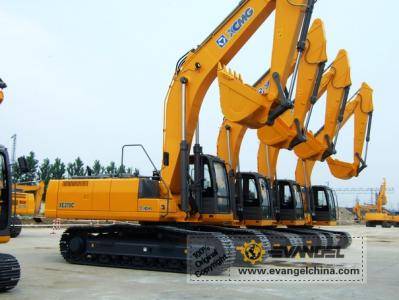

XE370C Excavator
Parameter:
| Model | Unit | XE370C | ||
|---|---|---|---|---|
| Operating weight | kg | 36600 | ||
| Standard bucketcapacity | m3 | 1.6 | ||
| Engine | Engine Model | --- | ISUZU AA-6HK1XQP | |
| Type | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| Turbo charged | --- | √ | ||
| Air to air intercooler | --- | √ | ||
| No. of cylinders | --- | 6 | ||
| Rated power/speed | kW/ r/min | 184/2000 | ||
| Max. torque/speed | N.m | 872.8/1700 | ||
| Displacement | L | 7.79 | ||
| Main data | Travel speed | km/h | 5.4/3.2 | |
| Max. gradeability | % | 58 | ||
| Swing speed | r/min | 10.1 | ||
| Ground pressure | kPa | 67.8 | ||
| Bucket digging force at power max. | kN | 242 | ||
| Arm crowd force at power max. | kN | 174 | ||
| Hydraulic | Main pump | -- | 2Plunger pump | |
| Rate flow | L/min | 2x280 | ||
| Max pressure of system | MPa | 31.5/34.3 | ||
| Max pressure of travel equipment | MPa | -- | ||
| Max pressure of swing equipment | MPa | -- | ||
| Pilot press setting | MPa | 3.9 | ||
| Oil & Fuel refilling | Fuel tank capacity | L | 600 | |
| Hydraulic tank capacity | L | 320 | ||
| Engine lubrication | L | 28 | ||
| Dimensions | Overall length | mm | 11105 | |
| Overall width | mm | 3190 | ||
| Overall height | mm | 3300 | ||
| Overall width of upperstructure | mm | 2960 | ||
| Track length | mm | 5070 | ||
| Overall width of undercarriage | mm | 3190 | ||
| Standard track shoe width | mm | 600 | ||
| Track length on ground | mm | 4040 | ||
| Track gauge | mm | 2590 | ||
| Clearance under counter weight | mm | 1197 | ||
| Ground clearance | mm | 500 | ||
| Tail swing radius | mm | 3450 | ||
| Working Range | Max. digging height | mm | 10445 | |
| Max. dumping height | mm | 7287 | ||
| Max. digging depth | mm | 7423 | ||
| Max. digging depth of cut for | mm | 7266 | ||
| Max. vertical wall digging depth | mm | 6776 | ||
| Max. digging reach | mm | 11114 | ||
| Max. digging reach | mm | 10907 | ||
| Max. turning radius | mm | 4376 | ||
